The Invisible Engine: Unveiling the Magic of How Elevator/Lift Work

We step in, press a button, and glide silently to our destination – often without a second thought. Elevators are such seamless parts of modern life that their inner workings remain a fascinating mystery to most. Yet, these vertical transporters are marvels of engineering, built on centuries-old principles refined for safety and efficiency. So, how does this everyday magic happen? Let's lift the curtain.

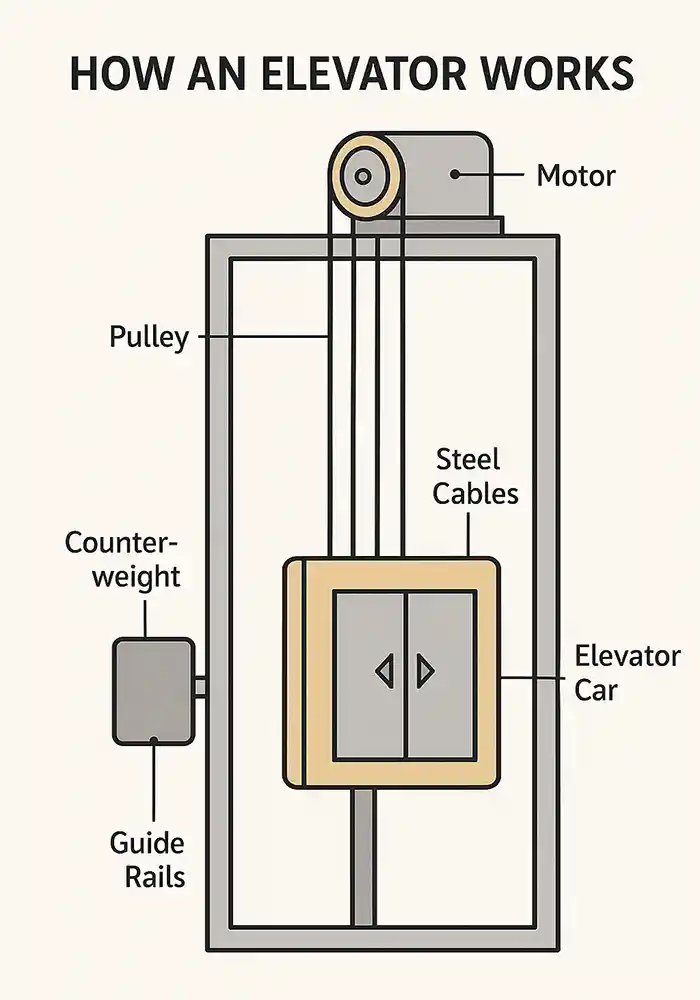

The Core Principle: Balancing the Load

At its heart, most modern elevators (especially in taller buildings) work on a simple but brilliant concept: counterbalancing.

1. The Car: This is the compartment you ride in.

2. The Counterweight: A heavy weight, typically weighing roughly the car's weight plus 40-50% of its maximum passenger load. This crucial component drastically reduces the energy needed to move the car.

3. The Sheave & Steel Ropes: A large, grooved wheel (the sheave) sits atop the elevator shaft. Strong steel cables connect the top of the elevator car to the counterweight, looping over the sheave. Think of it like a giant pulley system.

The Driving Force: The Machine

• Electric Motor: Mounted near the top of the shaft, this powerful motor spins the sheave.

• Direction & Control: When the motor turns the sheave in one direction, the cables pull the elevator car up while lowering the counterweight. When it spins the other way, the car descends, and the counterweight rises. The counterweight makes moving a loaded car much easier – lifting a full car mostly means lowering a heavy counterweight, requiring far less motor power than lifting the car's full weight alone.

The Brain: The Control System

• Call Buttons & Sensors: When you press a button inside the car or on a floor, the signal goes to the elevator's controller – its computer brain.

• The Controller: This sophisticated computer constantly monitors:

  • The position of all elevator cars in the bank.

  • Current calls (up/down requests from floors).

  • Destination requests from inside cars.

  • Car load weight.

• Optimization: The controller calculates the most efficient path, minimizing wait times and travel for everyone. It decides which car should answer which call and directs the motor accordingly, starting, stopping, and leveling the car perfectly with the floor.

Safety: The Paramount Concern

Elevators are statistically one of the safest modes of transport, thanks to multiple redundant safety systems:

• Brakes: Powerful electromagnetic brakes grip the sheave whenever the car is stopped or if power fails.

• Overspeed Governor: If the car descends too quickly, a mechanical device triggers safety clamps.

• Safety Clamps (Safeties): Steel jaws attached to the car frame. If triggered by the governor or a sudden slack rope, they wedge against the guide rails, bringing the car to an abrupt, safe stop.

• Buffers: Heavy-duty springs or hydraulic pistons at the bottom of the shaft absorb the impact if a car somehow over-travels, providing a final cushion.

• Multiple Cables: Each car is held by several independent steel cables, each capable of supporting the car's full weight alone. A complete cable failure is virtually impossible.

• Door Sensors: Light curtains or mechanical sensors prevent doors from closing on people or objects.

• Emergency Systems: Backup power, alarms, telephones, and manual release mechanisms are standard.

Hydraulic Elevators: For Lower Rises

While traction elevators (using cables and counterweights) dominate taller buildings, hydraulic elevators are common in low-rise buildings (typically 2-6 stories):

• The Ram: A large piston sits in a cylinder deep underground.

• Hydraulic Pump & Fluid: An electric pump forces hydraulic fluid (oil) into the cylinder, pushing the piston up, which lifts the elevator car.

• Descent: To lower the car, a valve opens, allowing controlled fluid flow back into a reservoir, lowering the piston and the car.

• No Counterweight: Simpler design but less energy-efficient for taller buildings and slower than traction elevators.

The Seamless Journey

So, the next time you step into an elevator, think about the intricate dance happening around you:

1. You press the button.

2. The controller brain assigns the car and plots the course.

3. The electric motor spins up.

4. Cables glide over the sheave.

5. The car ascends (or descends), perfectly counterbalanced by its heavy counterpart.

6. Sophisticated sensors ensure a smooth start and a perfectly level stop.

7. Multiple safety systems stand guard silently at every moment.

It's a symphony of mechanics, electronics, and physics, refined over decades, all working together to make your vertical voyage effortless and incredibly safe. The invisible engine truly is a masterpiece of modern engineering!
