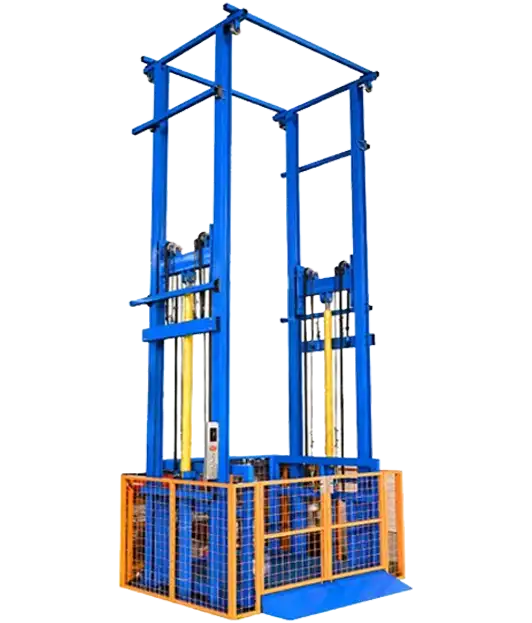

Hydraulic Cargo Lift

Hydraulic Cargo Lift

In the realm of heavy industrial material handling, where moving immense loads with reliability and control is paramount, the Hydraulic Cargo Lift stands as an engineering marvel. This workhorse of vertical transportation is specifically designed for applications that prioritize immense force over high speed, offering unmatched weight capacity and rugged durability. Unlike traction-based systems, a hydraulic lift uses the undeniable power of pressurized fluid to provide a exceptionally smooth and stable ride for the most valuable and heaviest goods, making it an indispensable asset for modern warehouses, factories, and commercial buildings.

Unmatched Strength and Reliability: Core Features

• Superior Weight Capacity and Stability: The fundamental advantage of a hydraulic system is its ability to generate tremendous force. Our Hydraulic Cargo Lifts are engineered to handle extreme loads, with standard models ranging from 2,500 kg to over 20,000 kg. The direct application of hydraulic power to the elevator car ensures a rock-steady platform that eliminates sway, making it ideal for transporting delicate machinery or precariously balanced pallets.

• Simplified Design for Robust Performance: The mechanical simplicity of a hydraulic system is its key to reliability. With fewer complex elevator components than traction systems—no gearboxes, no large overhead machine rooms—there are fewer points of potential failure. This robust design translates to less downtime, easier troubleshooting, and a significantly longer operational lifespan, even in the most punishing industrial environments.

• Smooth and Controlled Operation: Hydraulic power provides inherently smooth acceleration and deceleration. The start and stop movements are gradual, preventing loads from shifting, toppling, or sustaining damage during transit. This precise control is critical for ensuring both cargo safety and overall workplace safety.

• Cost-Effective Installation and Operation: Hydraulic lifts often have a lower initial installation cost, especially for low-rise and mid-rise applications (typically up to 6-8 stories). The machinery can be located in a nearby service room, eliminating the need for a bulky overhead penthouse, which is a major benefit in retrofitting existing buildings. Furthermore, modern systems are designed with efficiency in mind, managing energy consumption effectively despite their powerful performance.

• Inherent Safety and Fail-Safe Mechanisms: Safety is engineered into the core of the system. In the unlikely event of a power failure or hydraulic line breach, the lift will not free-fall. Automatic safety brakes engage, and the car will descend slowly in a controlled manner via a manual lowering valve, allowing for the safe retrieval of both cargo and personnel.

Precise Technical Specifications (Sample Model: HCL-6000 Hydraulic Series)

• Model: HCL-6000 (Hydraulic Cargo Lift - 6000kg)

• Drive System: Electro-Hydraulic with Power Unit

• Weight Capacity: 6,000 kg (6 Tonnes)

• Lifting Speed: 0.1 - 0.3 m/s (optimized for power, not speed)

• Maximum Travel Height: Up to 20 meters (approx. 6 floors)

• Car Interior Dimensions: Customizable (e.g., 3000mm W x 4000mm D x 2200mm H)

• Power Supply: 415V / 3Phase / 50Hz

• Control System: PLC-based control with push-button operation and position indicators

• Door System: Heavy-duty manual or power-operated vertical biparting doors

• Platform: Slip-resistant steel plate flooring
