OTIS DAA20220AK Traction Motor

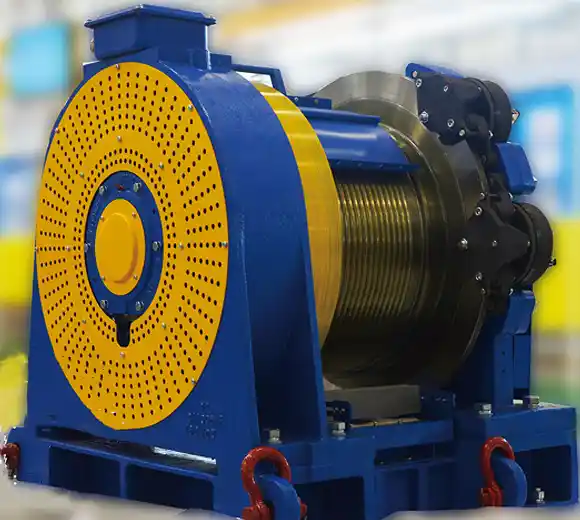

OTIS DAA20220AK Traction Machine: Engineering the Future of High-Rise Vertical Transportation

The OTIS DAA20220AK traction machine represents the cutting edge of elevator propulsion technology, engineered to meet the extraordinary demands of modern high-rise buildings and skyscrapers. This ultra-high-performance machine is the driving force behind some of the world's most advanced elevator systems, providing the seamless vertical transportation required in flagship commercial buildings and elite residential buildings. Its core function is to deliver powerful, precise, and exceptionally smooth movement for high-capacity elevator cars, redefining efficiency and passenger experience.

Designed for intensity and scale, the DAA20220AK supports a formidable rated payload range from 900kg to a massive 2000kg. This extensive weight capacity allows it to be configured for a variety of applications, from express elevator services to high-capacity freight solutions. Its most striking feature is its rated speed, which operates from a rapid 2.5m/s to an ultra-high 4.0m/s. This ensures minimal transit times between floors in the tallest structures, significantly enhancing building mobility. The sophisticated 32 motor poles are critical to this performance, generating exceptionally precise torque control for impossibly smooth acceleration and deceleration, eliminating jerk and ensuring passenger comfort even at extreme velocities.

Specifications:

Rated payload: 900kg-2000kg
Rated speed: 2.5m/s-4.0m/s
Protection Class: IP41
Insulation Class: F
Number of motor poles: 32
Maximum axial load: 15,000 kg

Built to thrive in the demanding environment of a high-rise machine room, the DAA20220AK is protected to IP41 standards. This ensures its critical internal elevator components are shielded from the ingress of solid objects and protected against dripping water, guaranteeing unwavering reliability. Furthermore, its Insulation Class: F construction is essential for this level of performance, allowing the motor windings to operate efficiently at elevated temperatures. This is a fundamental requirement for handling the heat generated during frequent high-speed, high-torque operations, thereby ensuring exceptional longevity and consistent power output.

The defining mechanical characteristic of the DAA20220AK is its monumental maximum axial load rating of 15,000 kg. This unparalleled specification is a direct response to the immense forces encountered in skyscraper elevator systems, including the weight of the car, counterweight, and high-tensile strength ropes over extreme heights. It is engineered for the most ambitious recommended lifting heights, solidifying its role as the solution for the world's tallest buildings. While specific brake metrics are model-dependent, the braking system is designed to be equally robust, providing the immense stopping power required to safely manage a 2000kg car traveling at 4.0m/s, ensuring absolute safety and control.

Operating on an industry-standard S5 40% duty cycle, this OTIS traction machine is perfectly calibrated for the intensive stop-start nature of high-speed elevator service. This optimized cycle manages thermal energy consumption effectively, preventing overheating and contributing to the overall energy efficiency of the building's transportation ecosystem. In essence, the OTIS DAA20220AK traction machine is not merely a component; it is a statement of engineering prowess, designed for projects where unparalleled speed, immense capacity, and ultimate reliability in vertical mobility are paramount.

Question and Answer (Q/A) about OTIS Traction Motor

Q1: What type of elevator systems is the OTIS DAA20220AK specifically designed for?
A1: The DAA20220AK is engineered for ultra-high-rise applications. Its combination of a 2000kg payload, blistering 4.0m/s speed, and a massive 15,000 kg axial load rating makes it ideal for express elevators in skyscrapers, large commercial towers, and high-density residential buildings where moving people quickly and efficiently is critical.

Q2: Why is the speed range of 2.5m/s to 4.0m/s so significant?
A2: This speed range places the DAA20220AK in the category of high-performance and ultra-high-speed elevator motors. Speeds of 4.0m/s are necessary to reduce travel time in buildings exceeding 50 stories, significantly improving tenant satisfaction and building flow. This makes it a key component for top-tier commercial and residential buildings.

Q3: What does the massive 15,000 kg maximum axial load rating mean for installation and safety?
A3: This rating is extraordinary and indicates the motor is built to handle the phenomenal forces present in a tall elevator system. It means the motor's bearings, housing, and shaft are incredibly robust. For installers and engineers, it provides a huge safety factor and ensures the mechanical integrity of the system under the most demanding conditions, preventing structural failure.

Q4: How does the 32-pole motor design contribute to performance at high speeds?
A4: A high pole count is crucial for high-speed operation. It allows for finer control of the magnetic field, resulting in exceptionally smooth torque production. This means the motor can accelerate a heavy car to 4.0m/s and decelerate it to a perfect stop without vibration or jerk, providing a premium ride quality that is essential in luxury buildings.

Q5: Are there any special considerations for the braking system on a motor this powerful?
A5: Absolutely. A motor capable of moving a 2000kg load at 4.0m/s possesses immense kinetic energy. The braking system must be correspondingly powerful to dissipate this energy safely and bring the elevator to a smooth, controlled stop. While specific specs are model-dependent, it would undoubtedly feature a high-torque, redundant braking system for maximum safety and reliability.
