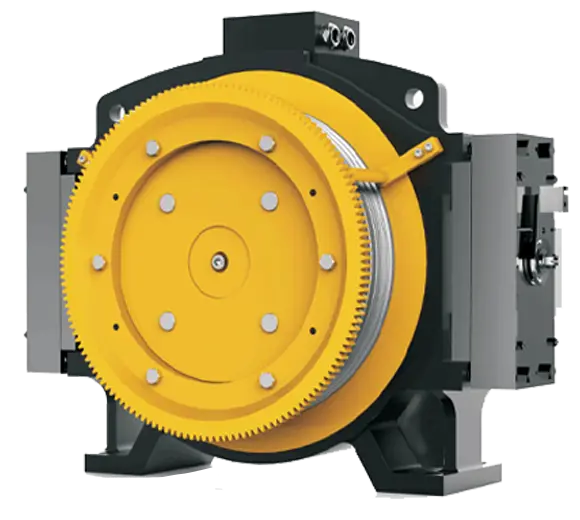

XIZI GETM3.0PRO Traction Machine

XIZI GETM3.0PRO Traction Machine

XIZI GETM3.0PRO Traction Machine represents the next generation of elevator drive technology, engineered to deliver exceptional performance in both high-rise buildings and commercial structures. This advanced traction system optimizes vertical transportation through innovative permanent magnet synchronous motor (PMSM) technology, significantly reducing energy consumption while maintaining precise control over elevator car movement.

Key Features & Benefits

1. Superior Energy Efficiency

   • Permanent magnet synchronous motor reduces power consumption by 30% compared to conventional systems

   • Regenerative braking technology feeds energy back into the building's power grid

   • Achieves IE4 premium efficiency rating for sustainable operation

2. Exceptional Performance

   • Supports elevator speeds from 0.5m/s to 4.0m/s

   • Compact design saves valuable machine room space

   • Low noise operation (<55dB) for sensitive environments

3. Smart Monitoring & Control

   • Integrated IoT sensors for real-time performance monitoring

   • Predictive maintenance capabilities reduce downtime

   • Compatible with all major elevator control systems

4. Reliability & Safety

   • EN 81-20/50 compliant safety features

   • Advanced thermal protection system

   • Corrosion-resistant materials for long service life

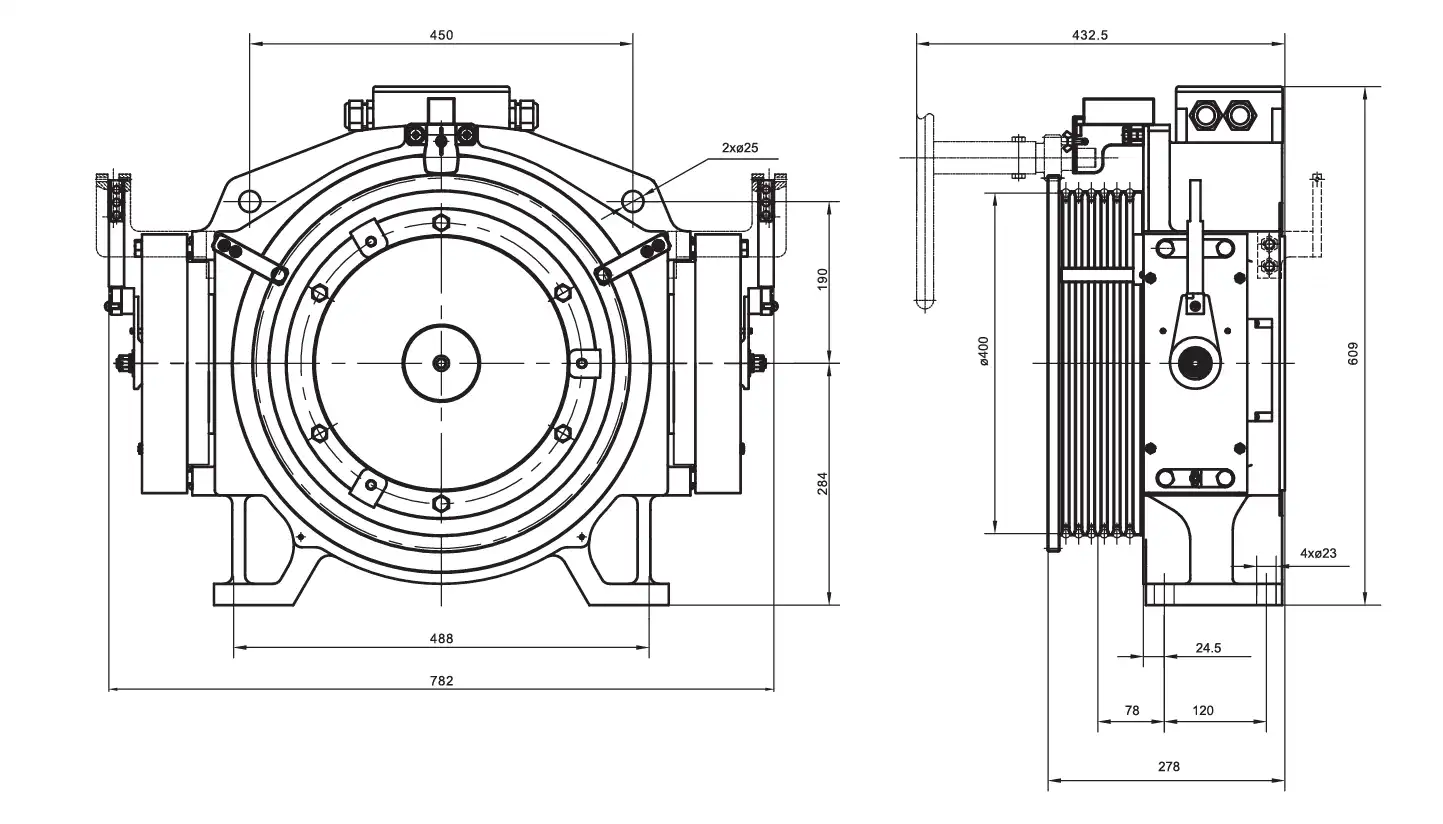

Dimensions:

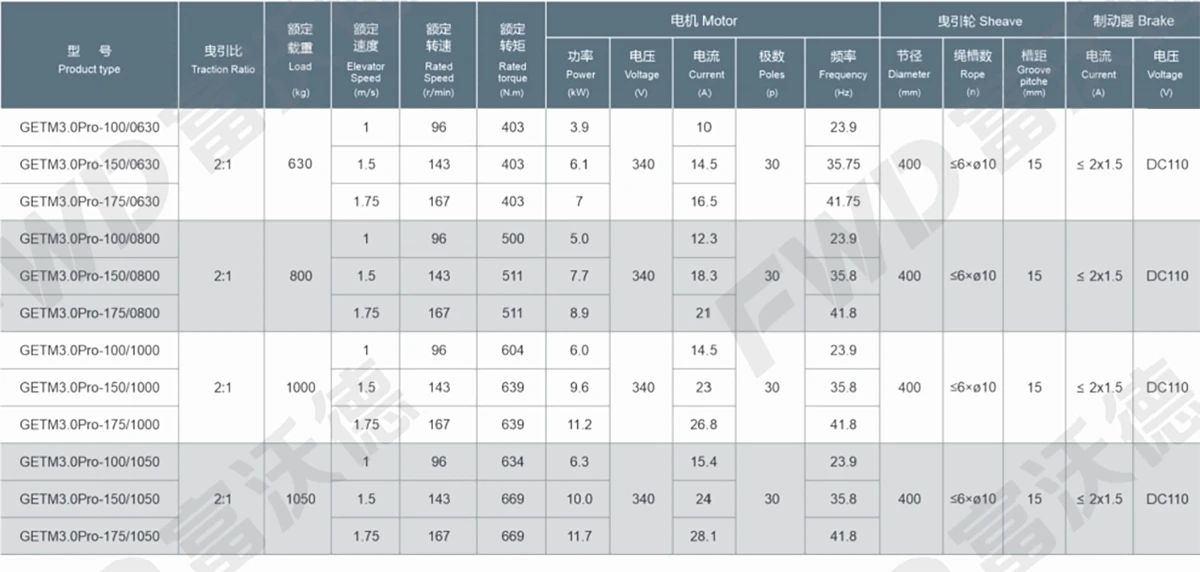

Technical Data:
