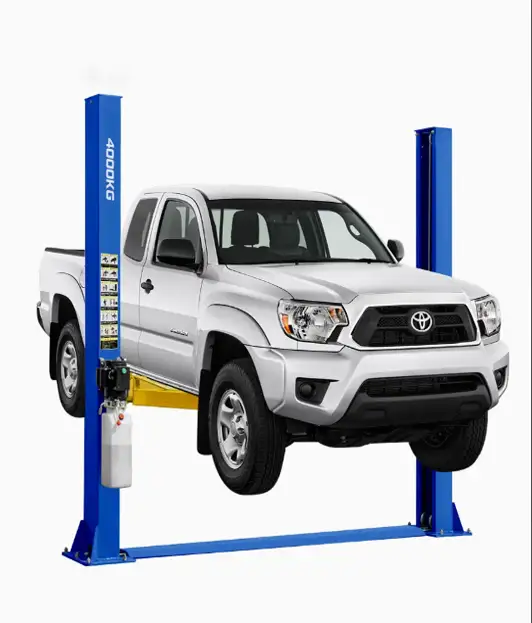

SIGMA Hydraulic 2 Post Car Parking Lift

Model: HGM-C06

Specifications:

Lifting Capacity: 3,000 KG–6,000 KG

Lifting Height: 72–78 inches (optimal for most vehicles)

Power Supply: 220V/380V hydraulic system

Arm Configurations: Symmetric or asymmetric (customizable)

Catalog

Send Inquiry

Product Details

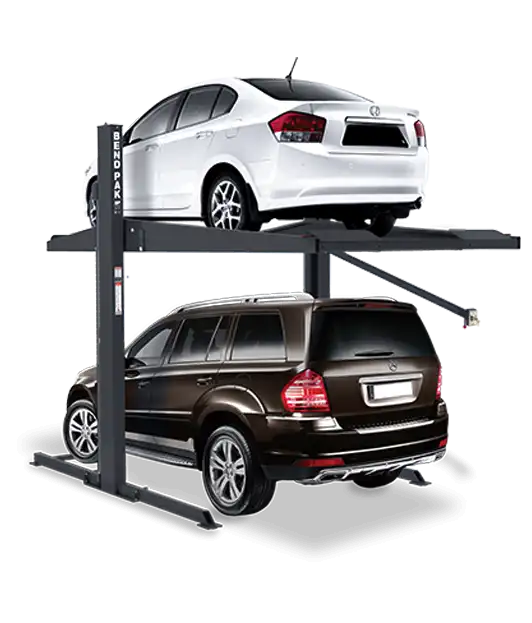

2 post car parking lift

Feature	Specification	Advantage
Dual Functionality	Parking + Workshop Maintenance	2-in-1 solution: Stack cars or repair undercarriage
Weight Capacity	3,000–6,000 kg (6,600–13,200 lbs)	Handles SUVs, trucks, EVs
Lift Height	1.8–3.6 m (adjustable locks every 15 cm)	Flexible storage/repair heights
Hydraulic System	Synchronized dual-cylinder, 220V/380V	Smooth ascent (0.18 m/s), works during load shedding
Construction	Reinforced steel columns (12mm thickness)	200% overload safety margin
Parking Stability	Automatic arm locks + wheel chocks	Zero risk of roll-away
Space Efficiency	Footprint: 3.2m x 5.4m (min.)	Fits tight garages & workshops

Monsoon-Proof Design
- IP65-rated control box (resists dust/humidity)
- Galvanized cables & epoxy-coated arms (ideal for tropical climates like Bangladesh).
Eco-Hydraulic Tech
- Biodegradable oil (ISO 6743-4 compliant)
- Regenerative descent: 22% energy recovery.
Smart Safety
- Laser alignment sensors (prevents asymmetric lifting)
- Emergency manual descent valve (power failure).
Adaptability
- Adjustable arm widths (800–1,400mm) for sedans to SUVs.
- Bolt-down or baseplate installation (no pit needed).
