Passenger Elevator Features:
Capacity: 450 kg - 1,600 kg (Serves 6-21 people, suitable for residential to high-rises)*
Speed: 1.0 m/s - 7.0 m/s (Low: 1-1.75m/s for ≤7 floors; Mid: 2-3.5m/s; High: 4-7m/s for 20+ floors)*

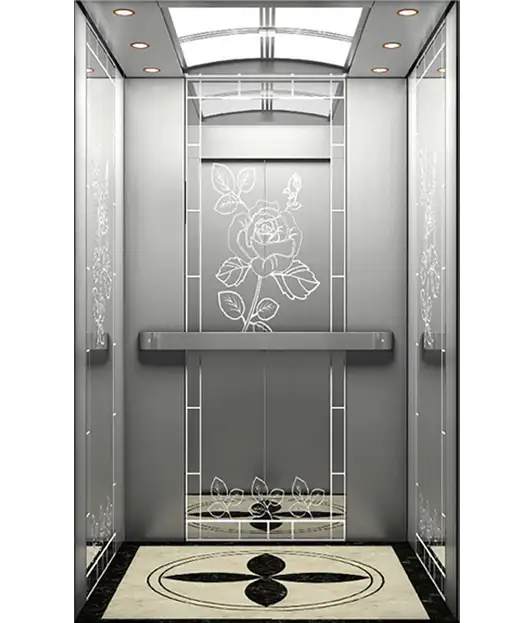

Cabin Walls/Ceiling: 1.2mm or 1.5mm 304 stainless steel (durable, corrosion-resistant)
Floor: PVC (practical, slip-resistant) or Marble (premium)
Door Decor: Hairline stainless steel finish

Key Options:
Safety: Fire-rated doors, Seismic detection (auto-stop in earthquakes)
Backup: Emergency power supply (EPS)
Tech: Multimedia display screen
Other: Access control, destination dispatch, ADA features

The cornerstone of efficient modern buildings, the passenger elevator or lift is an indispensable system for vertical transportation. Designed primarily to transport people safely, comfortably, and swiftly between floors, these elevators are fundamental to the functionality of residential buildings, commercial building complexes, and towering high rise buildings. Understanding their core features and benefits is crucial for architects, builders, property managers, and owners alike.

Core Function & Components:

At its heart, a passenger elevator system comprises several key elevator components working in harmony:

• Elevator Car: The cabin where passengers stand. Modern cars are constructed from durable, lightweight materials and offer customizable interior finishes (stainless steel, laminate, wood, glass) to suit building aesthetics, whether a sleek office tower or an elegant residential building. Car size directly impacts passenger comfort and weight capacity.

• Guide Rails: Precision-engineered rails mounted vertically in the hoistway, guiding the car and counterweight smoothly during travel.

• Hoistway (Shaft): The enclosed vertical space through which the elevator car travels.

• Machine & Drive System: The powerhouse. Modern systems often use gearless traction machines (highly efficient, smooth, ideal for mid/high-rise) or machine-room-less (MRL) configurations (space-saving, common in low/mid-rise). Hydraulic drives are also used for lower rise applications. Advanced drives significantly impact energy consumption.

• Control System: The "brain" managing car movement, door operation, call responses, and safety features. Modern microprocessor-based systems optimize traffic flow, especially important in busy commercial building environments, reducing wait times.

• Doors: Automatic doors (typically sliding) at each landing and on the car. Options include single-speed, two-speed, or center-opening. Safety sensors prevent closing on obstacles.

• Counterweight: Balances the weight of the car (typically 40-50% of rated load), reducing the power required by the motor and thus lowering energy consumption.

• Safety Gear: A critical mechanical device that grips the guide rails to stop the car safely in the rare event of overspeed or freefall.

Key Specifications & Performance:

• Weight Capacity: Standard capacities range widely, from 630kg (8-9 people) for smaller residential buildings to 1600kg (21 people), 2000kg (26 people), and beyond for large offices or high rise buildings. Selecting the correct capacity is vital for handling peak traffic and preventing overload.

• Speed: Travel speeds vary based on building height. Lower rise buildings might use speeds of 0.5-1.0 m/s (100-200 ft/min). Mid-rise speeds range from 1.0-2.5 m/s (200-500 ft/min). High rise buildings require faster elevators, often exceeding 3.0 m/s (600 ft/min) and reaching 10 m/s (2000 ft/min) or more in the tallest towers.

• Stops: The number of floors the elevator serves. Control systems efficiently manage multiple stops.

• Travel Height: The total vertical distance the elevator moves.

Optimizing for Efficiency and Sustainability:

Modern passenger elevators are designed with energy consumption as a top priority. Key features include:

• Regenerative Drives: Convert the kinetic energy generated during braking (especially when descending with a load or ascending lightly loaded) into electricity, feeding it back into the building's grid. This can reduce net energy consumption by 20-40% compared to non-regenerative systems.

• LED Lighting: Low-energy lighting within the car and hoistway.

• Standby Mode: Systems power down non-essential functions when idle.

• Efficient Gearless Motors: Offer higher efficiency than traditional geared motors.

• Destination Dispatch Control (Optional): In high-traffic commercial building settings, this software groups passengers traveling to nearby floors into the same car, minimizing stops and total travel time, thereby improving efficiency and passenger experience.

Applications Across Building Types:

• Residential Buildings: Apartments, condos, luxury homes. Focus on comfort, quiet operation, reliability, aesthetics, and accessibility. MRL systems are popular due to space savings.

• Commercial Buildings: Offices, retail centers, hotels. Demand high reliability, efficiency, traffic handling capacity, and durability. Speed and destination control are often key.

• High Rise Buildings: Skyscrapers, mixed-use towers. Require high-speed elevators, sophisticated dispatching systems, sky lobby setups, and potentially double-deck cars to move large volumes of people efficiently. Structural integration and safety are paramount.

Safety: The Non-Negotiable Priority:

Passenger elevators incorporate multiple overlapping safety systems beyond the fundamental safety gear:

• Overspeed Governor: Triggers the safety gear if car speed exceeds a safe limit.

• Buffer Systems: Absorb impact energy at the pit bottom.

• Door Safety Sensors: Re-opening device (light curtain or safety edge) prevents door closure on people/objects.

• Emergency Communication: Two-way intercom or telephone system inside the car.

• Emergency Lighting & Power: Battery backup ensures lighting and communication during power failures.

• Seismic Operation: Systems designed to safely park elevators during earthquakes in relevant zones.

• Compliance: Strict adherence to national and international codes (e.g., ASME A17.1/CSA B44, EN 81).

Choosing the Right Passenger Elevator:

Selecting the optimal system involves careful consideration of:

1. Building Type & Height: Residential, commercial, high-rise? Number of floors?

2. Traffic Analysis: Peak passenger volumes, required handling capacity.

3. Capacity & Size: Needed weight capacity and car dimensions for comfort and accessibility.

4. Speed Requirements: Based on travel height and user expectations.

5. Energy Efficiency Goals: Target level for reducing energy consumption.

6. Aesthetic Integration: Car interior and landing door finishes.

7. Budget: Initial cost vs. long-term operational costs (including energy).

8. Accessibility Standards: Compliance with regulations (e.g., ADA, EN 81-70).

Modern passenger elevators are sophisticated feats of engineering, seamlessly enabling the vertical transportation essential for contemporary living and working environments. By understanding the core elevator components, performance metrics like weight capacity and speed, and the critical focus on safety and reducing energy consumption, stakeholders can make informed decisions to implement the ideal system for their residential buildings, commercial building projects, or ambitious high rise buildings.

Q/A: Passenger Elevator Industry Insights

• Q: How often does a passenger elevator need maintenance?
  A: Passenger elevators require regular, scheduled maintenance, typically monthly. This involves lubrication, safety checks, component inspection, and adjustments by certified technicians. Strict adherence to maintenance schedules is crucial for safety, reliability, and longevity, preventing costly breakdowns and ensuring compliance with safety codes.

• Q: What's the typical lifespan of a passenger elevator?
  A: With proper maintenance and timely modernization of key components, a well-built passenger elevator can last 25-30 years or more. The controller and drive system often undergo modernization around the 15-20 year mark to improve efficiency, reliability, and safety features, significantly extending the overall system life.

• Q: How much energy does a modern passenger elevator consume?
  A: Energy consumption varies greatly based on usage, building height, drive type, and technology. Modern, efficiently designed elevators with regenerative drives can consume 3-8 kWh per day in a mid-rise building with moderate traffic. Older, non-regenerative models can consume significantly more. Regenerative drives can reduce net consumption by 20-40%.

• Q: What is Destination Dispatch Control?
  A: Destination Dispatch is an advanced control system used primarily in busy commercial building or high rise building settings. Passengers enter their destination floor at a lobby kiosk before boarding. The system groups passengers traveling to the same or adjacent floors into the same elevator car. This minimizes stops, reduces overall travel time, improves passenger flow, and can lower energy consumption by optimizing trips.

• Q: Are passenger elevators required to be accessible?
  A: Yes, absolutely. Building codes worldwide (like the ADA in the US or EN 81-70 in Europe) mandate accessibility features in passenger elevators. These include minimum car dimensions, specific door widths, accessible control panels (height, tactile buttons, Braille), audible and visual signals, and handrails. Ensuring accessibility allows everyone, including people with disabilities, to use vertical transportation safely and independently.
