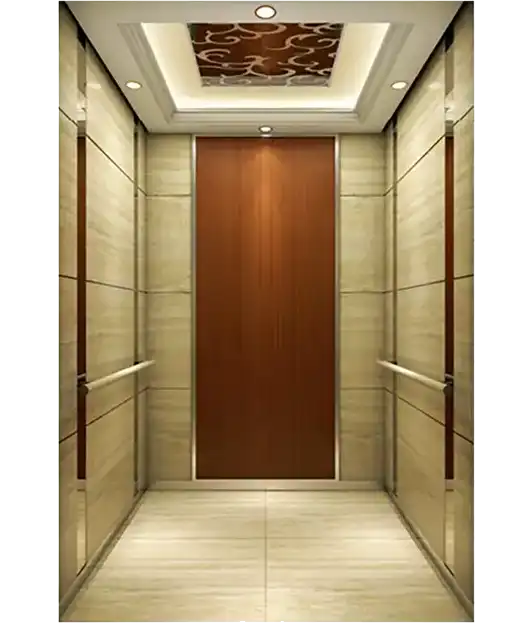

NINGBO SIGMA Modern Textured Passenger Elevator

NINGBO SIGMA Modern Textured Passenger Elevator

Passenger elevators represent one of the most transformative inventions in modern architecture and urban development. These sophisticated vertical transportation systems have enabled the creation of skyscrapers and revolutionized how we inhabit and navigate multi-level structures. From their humble beginnings as steam-powered platforms to today's AI-integrated smart systems, elevators have become indispensable in our vertical world.

Section 1: Comprehensive System Architecture

1. Structural Framework

• Guide Rails: Precision-engineered steel tracks (T-shaped or hollow) ensuring smooth vertical movement

• Car Frame: Robust steel construction with multiple safety redundancies

• Counterweight System: Typically 40-50% of rated load capacity for optimal energy efficiency

• Hoistway: Fire-rated construction with seismic considerations in vulnerable regions

2. Propulsion Technologies

• Traction Systems:

  • Geared (worm gear) for mid-rise applications (up to 30 floors)

  • Gearless for high-rises (permanent magnet synchronous motors)

  • Rope configurations: 1:1 or 2:1 roping systems

• Hydraulic Systems:

  • Hole-less designs for environmental protection

  • Progressive valve control for smooth acceleration

• Emerging Technologies:

  • Linear induction motors

  • Magnetic levitation prototypes

3. Control Systems Evolution

• Historical:

  • Relay-based controls (pre-1980s)

  • Early microprocessor systems

• Modern:

  • 32-bit/64-bit processors with real-time OS

  • Predictive AI algorithms for traffic management

  • Cloud-connected monitoring systems

Section 2: Advanced Safety Engineering

1. Multi-Layered Protection Systems

• Mechanical Safeties:

  • Overspeed governors with centrifugal activation

  • Progressive safety gears (instantaneous vs. gradual)

  • Buffers: polyurethane or oil-based energy absorbers

• Electrical Protections:

  • Dual-circuit braking systems

  • Phase monitoring and reversal prevention

  • Emergency power systems (UPS/battery backup)

2. Seismic and Extreme Event Protection

• Building sway compensation systems

• Earthquake detection and automatic recall

• Fire-rated landing doors and smoke containment

3. Accessibility Innovations

• Tactile interfaces with haptic feedback

• Advanced voice recognition systems

• Dynamic braille displays (emerging technology)

Section 3: Cutting-Edge Performance Metrics

1. Speed Breakthroughs

• Current records: 1,260 m/min (Shanghai Tower)

• Acceleration profiles optimized for passenger comfort

• Atmospheric pressure control systems

2. Energy Efficiency Milestones

• Regenerative drives recovering up to 35% energy

• VVVF (Variable Voltage Variable Frequency) drives

• Sleep mode power consumption <15W

3. Traffic Handling Capabilities

• Destination dispatch systems reducing wait times by 30-40%

• Machine learning algorithms predicting traffic patterns

• Virtual queuing systems for peak periods

Section 4: Specialized Applications

1. Super-Tall Building Solutions

• Double-deck elevator configurations

• Sky lobby transfer systems

• Twin elevator systems for uninterrupted service

2. Hospital and Medical Transport

• Extra-large cars (minimum 2,400mm depth)

• Antimicrobial copper alloy surfaces

• Emergency power prioritization systems

3. Luxury Residential Options

• Custom interior design packages

• Glass panoramic models with structural glazing

• Silent operation (<35 dB) through active noise cancellation

Section 5: The Future Horizon

1. Ropeless Elevator Systems

• MULTI technology by Thyssenkrupp

• Linear motor propulsion

• Horizontal and vertical movement capabilities

2. Smart Ecosystem Integration

• Biometric access control

• Predictive maintenance through IoT sensors

• Integration with building management systems

3. Sustainable Innovations

• Graphene composite ropes

• Solar-powered elevator systems

• Self-charging kinetic energy recovery

4. Space Elevator Concepts

• Carbon nanotube cable research

• Orbital station connections

• Atmospheric interface challenges

Conclusion: Elevating Human Potential

The modern passenger elevator represents a perfect synergy of mechanical engineering, electronic control, and architectural vision. As we stand on the brink of new breakthroughs in vertical transportation, these systems continue to redefine urban landscapes and human mobility. From enabling the world's tallest structures to providing accessibility for all, elevators remain fundamental to our built environment.

The coming decades promise even more revolutionary developments, with ropeless multidirectional systems, AI-optimized traffic flows, and sustainable designs that will shape the cities of tomorrow. As buildings grow taller and smarter, the passenger elevator will continue its evolution as both a practical necessity and an engineering marvel, quite literally elevating human potential to new heights.

This comprehensive examination demonstrates how what was once a simple lifting device has transformed into one of the most complex and carefully engineered systems in modern buildings, combining advanced physics, cutting-edge materials science, and sophisticated computer control to move people safely and efficiently through our vertical world.

Drawings and Parameters:
